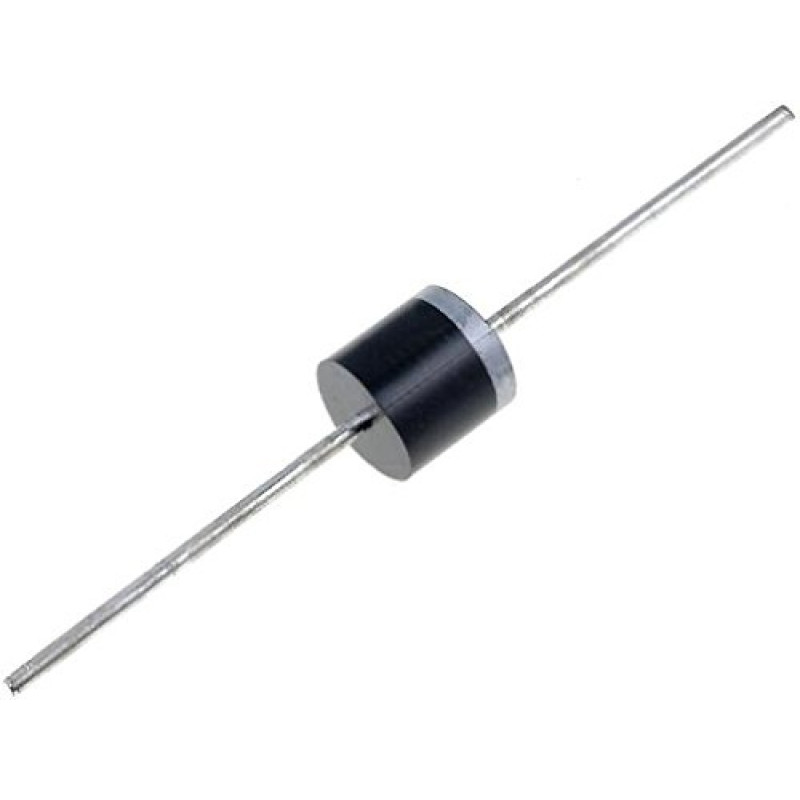

10A10 10A 1000V General Purpose Rectifier Diode


Product Details

  • Product: 10A10 General Purpose Rectifier Diode
  • Number of pins: 2
  • Case: R-6 / P-600, molded plastic
  • Mounting type: through hole
  • Mounting position: any
  • Polarity: Cathode band
  • Package contains: 1 x 10A10 10A 1000V General Purpose Rectifier Diode

12.00 (ex. GST)

Features

  • Diffused junction
  • Low forward voltage drop
  • High current capability
  • High reliability
  • High surge current current capability
  • Low leakage

Mechanical Specification

  • Case: R-6 / P-600, molded plastic
  • Terminals: plated leads
  • Polarity: cathode band
  • Mounting position: any
  • Weight: 2.1g

Specification

  • Peak repetitive reverse voltage: 1000V
  • Working peak reverse voltage: 1000V
  • DC blocking voltage: 1000V
  • RMS reverse voltage: 700V
  • Average rectified output current: 10A
  • Non-repetitive peak forward surge current: 400A
  • Forward voltage: 0.98V
  • Maximum DC reverse current
    • At 25℃: 2µA
    • At 100℃: 100A
  • Operating temperature range: -55℃ to + 125℃
