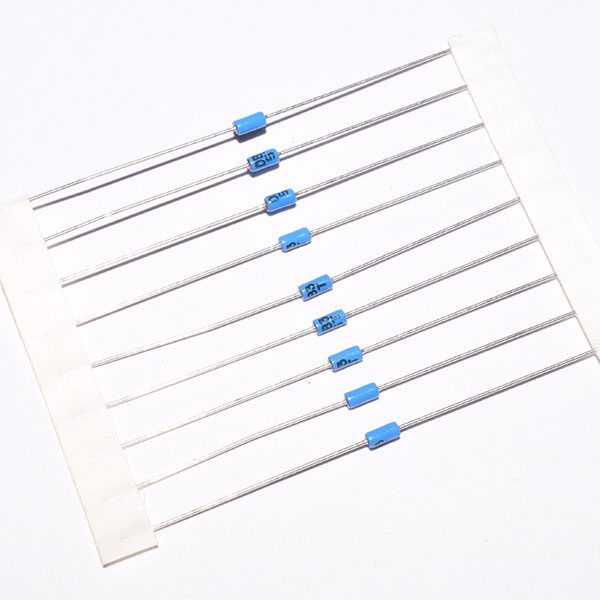

10pc DB3 DIAC – Trigger Diode


Product Details :

Product type DIAC
Number DB3
Colour blue
Terminal 2
Terminal type through holes

15.00 (ex. GST)

DB3 is a DIAC, functions as a trigger diode with a fixed voltage reference. The device is used in conjunction with Triac to simplify the gate control circuit and as a starting element in fluorescent bulb ballast.

Specification

  • Breakover Voltage: 28v to 36v
  • Typical Breakover voltage: 32v
  • Output voltage: 5v
  • Breakover current: 50µA
  • Leakage current: 10µA
  • Peak current: 0.30A
  • Rise time: 2µs
  • Operating junction temperature: -40℃ to +125℃

Package contains

  • 10 x DB3 DIAC
