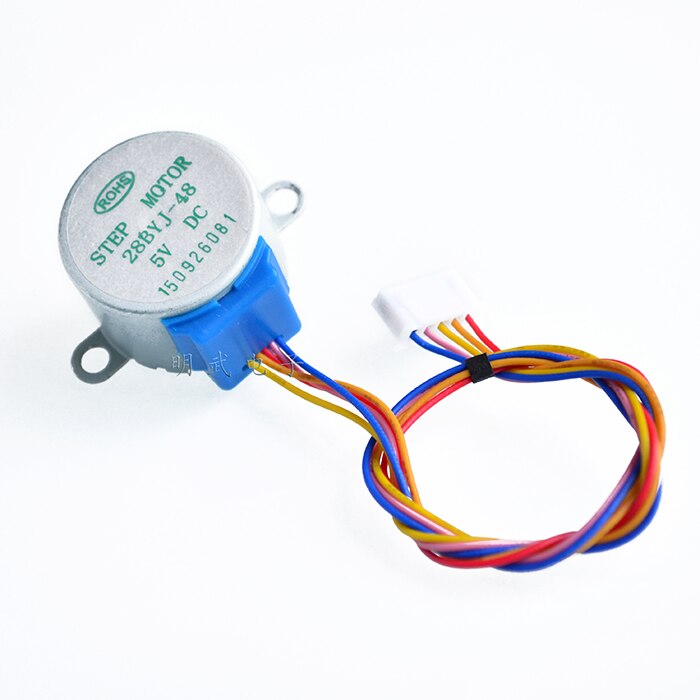

28BYJ-48 5V Mini Stepper Motor


Product Details

  • Product Type: mini stepper motor
  • Model: 28BYJ-48
  • Package contains: 1x 28BYJ-48 5V Mini Stepper Motor

99.00 (ex. GST)

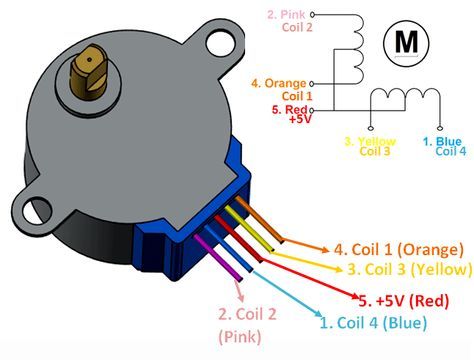

28BYJ-48 is the most commonly used stepper motor because of its compact size, 5V power supply (that can be provided by any controller), and a high level of control. It has a stride angle of 5.625°/64, hence it will make 64 steps to complete one rotation (as every step covers  5.625) so it has a high level of control. This stepper motor has 4 coils unipolar arrangement (as it is 4 phase motor) and each coil is rated for +5V power supply so it can be controlled easily controlled by any microcontroller.

28BYJ-48 stepper motors consume high current so motor driver like ULN2003 Motor driver module is mandatory to drive this motor. It consumes +5V so can not give high torque, for high torque prefer NEMA17.

Specification

  • Rated voltage supply: +5V
  • No of phase: 4
  • Stride angle: 5.625°/64
  • Speed variation ratio: 1/64
  • Pull-in torque: 300 gf.cm
  • Friction torque: 600-1200 gf.cm
  • Self-positioning torque: >34.3mN.m
  • In-traction torque: >34.3mN.m (120Hz)
  • DC resistance: 50Ω±7% (25°C)
  • Insulated resistance: >10MΩ (500V)
  • Insulated power: 600VAC/1mA/1s
  • Frequency: 100Hz
  • Idle in-traction frequency: >600Hz
  • Idle out-traction frequency: >1000Hz
  • Insulation grade: A

Application

  • DIY robotics projects
  • CNC machines and 3D printers
  • Machines that need precise control
  • Motor and security camera
  • DVD players
