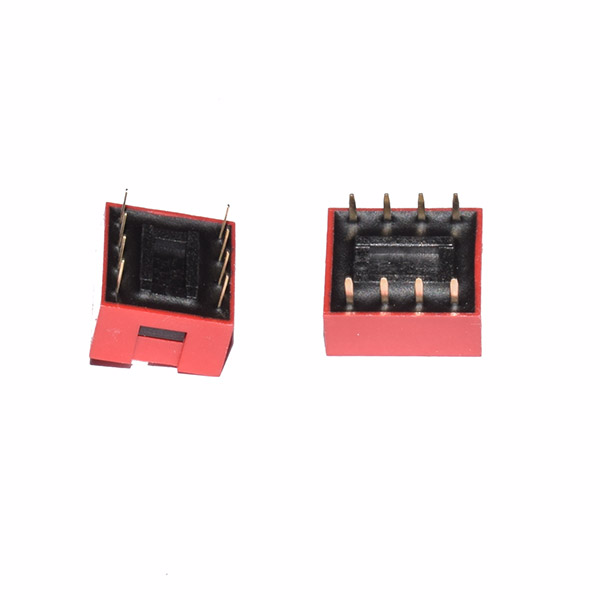

4 Way SPST Slide DIP Switch – 2.54 mm Pitch

Product Details :

Switch type 4 in 1 DIP SPDT switch
No of pins 8
Pin type PCB mounted
Position or Switch control individual
Color red and white
No of position 4
Pin spacing 2.54mm
Actuator type Raised and Recessed
Package contains 1 x 4 positions DIP switch

12.00 (ex. GST)

4 position or 4 in 1, Dual In-Line Package (DIP) SPDT slide switch, namely the more traditional toggle switch is a set of electrical switches which is packed in a small box or housing. This DIP single pole double throw (SPDT) switch forces the operator to choose between connecting to either one of two terminals as such the switch will remain connected to one or the other, and the two terminals will never be connected. This switch is designed to be easily mounted on printed circuit boards to provide various ranges of input to the electronic device. You can easily control the input by using the DIP switch.

Technical Data:
  • Max Operating Voltage: 50 VDC
  • Max Current (Carrying Capacity): 100 mADC
  • Max Switching: 0.8 W
  • Contact Resistance: <100 mΩ
  • Insulation Resistance (at 100 VDC) : >100 mΩ
  • Test Voltage (1 minute): 500 VAC
  • Life Expectancy: 1000 operations
  • Operating Temperature: -20 to +80 C
  • Storage Temperature: -55 to +85 C
