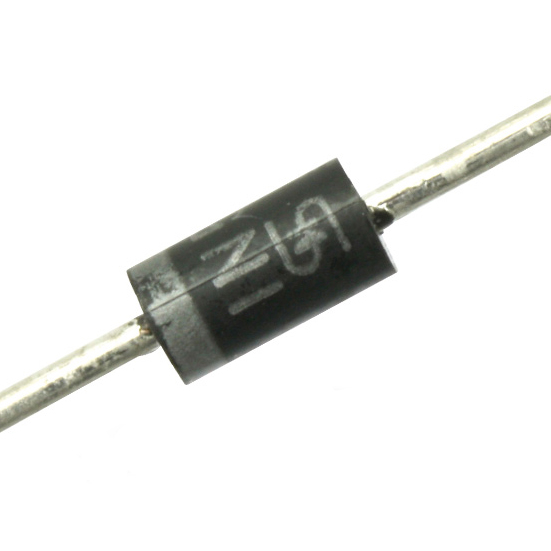

5pcs 1N5822 30V 3A Schottky Diode

Add to wishlist

Product Details

  • Product: 1N5822 Schottky Diode
  • Case material: molded plastic
  • Number of pins: 2
  • Mounting type: through hole
  • Package contains: 5 x 1N5822 30V 3A Schottky Diode

₹30.00 (ex. GST)

Add to wishlist

Features

  • Extremely low forward voltage
  • Low power loss, high efficiency
  • Low stored charge, majority carrier conduction
  • Very small conduction losses
  • Negligible switching losses
  • Extremely fast switching
  • Avalanche capability specified

Mechanical Data

  • Case: epoxy, molded
  • Finish: All external surfaces corrosion resistant and terminal leads are readily solderable
  • Polarity: cathode indicated by polarity band
  • Weight: 1.1g

Specification

  • Peak repetitive reverse voltage: 40V
  • Working peak reverse voltage: 40V
  • DC blocking voltage: 40V
  • Non-repetitive peak reverse voltage: 48V
  • RMS reverse voltage: 28V
  • Average rectified forward current: 3A
  • Non-repetitive peak surge current (for one cycle): 80A
  • Maximum instantaneous forward voltage: 0.39V to 0.95V
  • Maximum instantaneous reverse current: 2mA to 20mA
  • Operating temperature: -65℃ to +125℃
