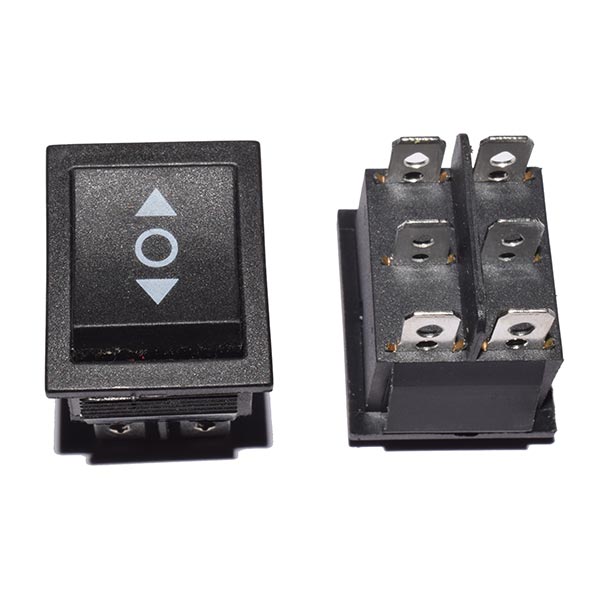

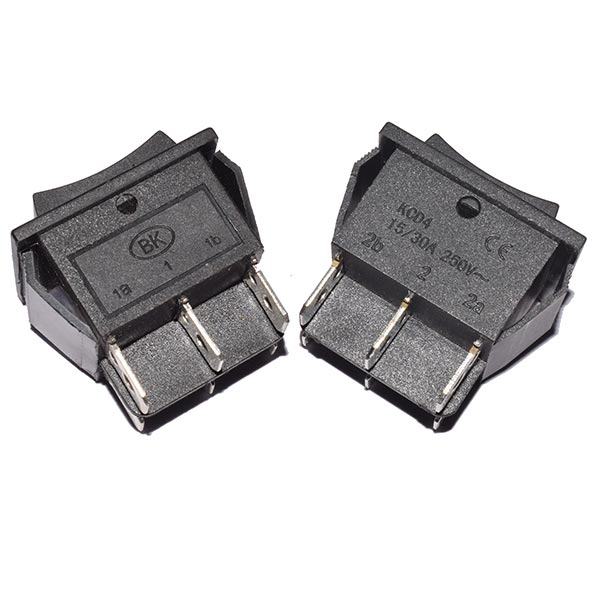

6 Pin DPDT Rocker Momentary Switch for Robot Direction Control – Spring Action Center Off
Product Details
- Product type: DPDT rocker switch
- Positions: 3
- Type: Centre Off
- Colour: Black
- Size: 3cm
- Weight: approx 20g
- Number of pins: 6
- Material: homopolymer
- Package contains: 1 X DPDT rocker switch
₹45.00 (ex. GST)
Your robotic competition is knocking at the door, and your robot is out of your control. Bring back the control by using the Double Pole Double Throw (DPDT) Rocker Momentary switch. It is an electromechanical switch with having 2 inputs and 4 outputs. Each input has 2 corresponding outputs that it can connect to, this switch is generally used to reverse the polarity of a motor by toggling two poles on press and hold action and again return to the base position by spring action, hence you can easily control your motor in both directions.
Specification
- Voltage: 12V
- AC voltage: 250V/10A and 125V/15A
- Compatible with both AC and DC
- High durability
- 3 position control
- Ideal for DC motors and linear actuators
