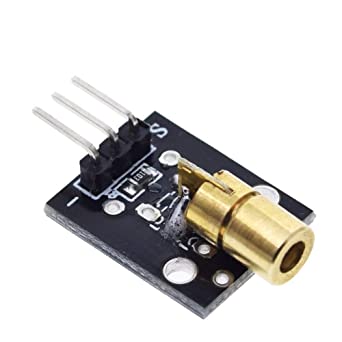

650nM 5V Laser Diode Module

Product Details

  • Product: 650nM laser diode module
  • Dimension: 35mm x 12mm
  • Laser beam color: red
  • Package contains: 1 x 650nM 5V Laser Diode Module

53.10 59.00 (ex. GST)

This laser diode module emits a small intense focused beam of visible red light. The module head is composed of a light emitting diode, condenser lens, and adjustable copper sleeve and assembled when delivered, the focal length of the lens is adjusted and glued by a strong glue stick, which works directly by connecting a 5V power supply.

The module is breadboard friendly, small in size, cost-effective and has an operating voltage of 5V that can be directly operated by Arduino.


  • Although this is a low power module but avoid looking directly to its beam or point a laser at another person
  • Pay attention to the laser cell to prevent from being burnt or battery explosion due to short circuit when removing the battery


  • Input voltage supply: 5V
  • Input current: 30mA
  • Wavelength: 650nM
  • Line length: 135mm
  • Transmit power: 58mW
  • Driver circuit: APC circuit
  • Operating temperature range: -36℃ to +65℃


  • Small size
  • Cost-effective
  • Breadboard friendly
  • Standard 5V operating voltage
