7400 IC – Quad 2- Input NAND Gate
Product Details
- IC number: 7400
- Function: NAND gate IC
- Number of gates in single IC package: 4
- Category: 74xx series

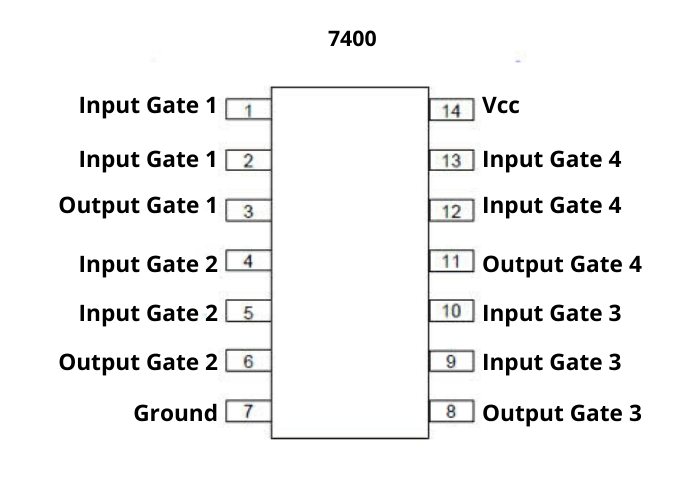

- Pin counts: 14
- Pin type: through hole
- Package: 14-DIP (Dual-in-Line) Plastic package
₹17.00 (ex. GST)
7400 is a logic gate 74xx series IC. It performs logic NAND and contains 4 such circuits in 1 integrated circuit (IC) package.
Specification
- Supply voltage: 4.5V to 5.25V
- Typical operating voltage: 5V
- Minimum high-level input voltage: 2V
- Low-level input voltage: 0.8V
- Operating Temperature: 0℃ to 700℃
Package Contains:
- 1 x 7400 NAND gate IC
