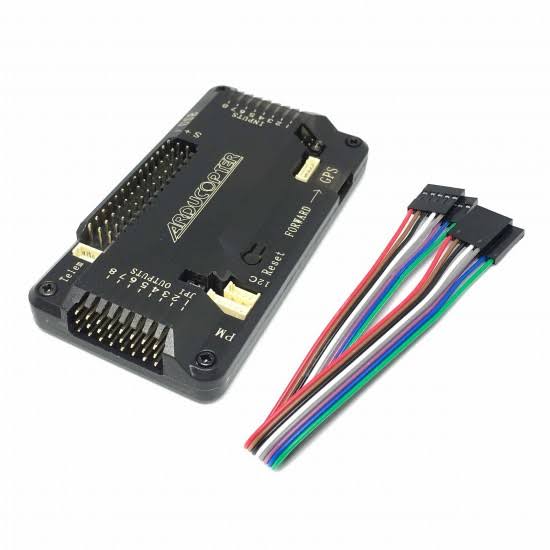

APM2.8 Flight Controller with In-Built Compass for Drone


Product Details

  • Product: APM (Ardupilot Mega) flight controller
  • Version: APM2.8
  • Dimensions: 85mm x 45mm x 15mm
  • Weight: 82g
  • Package contains: 1 x APM2.8 Flight Controller and cables

5,999.00 (ex. GST)

APM (Ardupilot Mega) is an open-source autopilot system. The bard can convert any fixed-wing, rotary-wing, and multi-rotor vehicle (even boards and car) into a completely autonomous vehicle, capable of performing a task like programmed GPS missions with waypoints (with the optional GPS module).

APM2.8 is an updated version of 2.6 with a built-in compass. The module includes a 3-axis gyro, accelerometer, and high-performance barometer. However, sensors are exactly the same as APM2.6 but with an extra option to use between a built-in compass or external via jumper.

It allows users to interface via various interfaces for programing, reviewing logs, even some apps for smartphones and tablets. The optional MAVlink telemetry radio allows two ways of communication that give you full control and provide live data back to the user’s computers, tablets, or smartphones. The list of what this flight controller is capable of has quickly been suppressed with what it can not do, with features flight modes and supported platforms.

The revision of the board has compass onboard compass, which is designed for the vehicle (especially for multirotor or rovers) where the compass should be placed as far from power source and motors as possible to avoid magnetic interference.

Features

  • Includes 3-axis gyro, accelerometer, and barometer
  • Onboard 4MB dataflash chip for automatic datalogging
  • Compatible with Arduino
  • Optional off-board GPS, LEA-6H module with Compass
  • One of the first open-source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
  • Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
  • Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
  • Pre-soldered header pins

Board Pinout

APM2.8 Ardupilot Board Pinout

APM2.4 ArDiupilot Motor Connection
