CD4026 Decade Counter/Divider – 7 Segment Driver IC


Product Details

  • IC: CD4026
  • Function: Decade counter and 7 segment driver

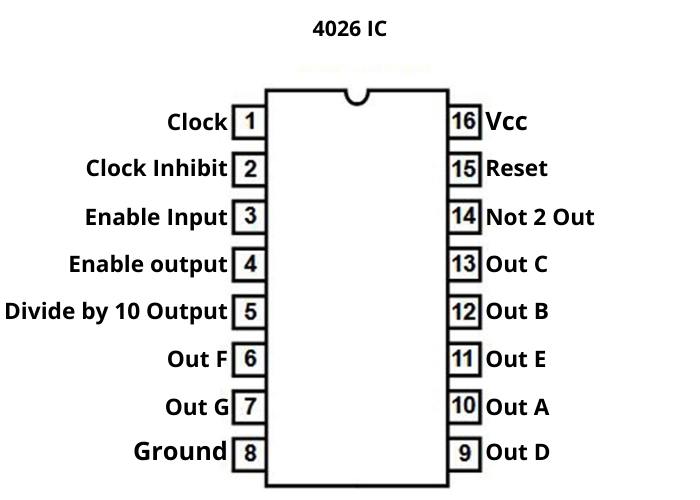

  • Pin counts: 16
  • Mounting type: through hole
  • Package: PDIP-16
  • Package contains: 1 x CD4026 Counter IC

35.00 (ex. GST)

CD4026 is a decade counter which consists of a 5-stage Johnson decade counter. It has an output decoder which converts the johnson output to 7-segment decoder output. It drives 1 stage (0-9) numeric count directly to a common cathode 7 segment display. Increasing the count as simple with CD4026 IC as by giving a high clock pulse. Displaying multiple digits is also possible by cascading more than 1 CD4026 IC. It comes in standard 16-pin PDIP.

Features

  • Counter and 7-segment decoder in a single package
  • Drives common cathode type 7 segment display directly
  • Easy to increase the count by giving a high clock pulse
  • Can be displayed more than 1 digit by cascading more than 1 CD4026 IC
  • Ideal for low-power display
  • Interfacing with microcontroller and timer is simple
  • Fully static counter operation
  • Schmitt-triggered clock inputs

Specification

  • Voltage supply range: 3V to 18V
  • Maximum clock frequency: 6Mhz
  • DC input current: ±10mA
  • Power dissipation: 500mW

Application

  • 7 segment display counter
  • Frequency division 7-segment decimal display
  • Can be used as a counter in clock and timer
