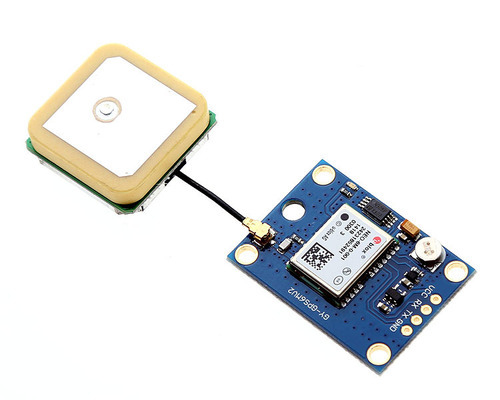

GY-NEO6V2 NEO-6M V2 GPS Module with Antenna and EPROM

Product Details

  • Module: GY-NEO6V2 GPS module
  • Antenna type: ceramic
  • Module dimension: 25mm x 35mm
  • Antenna size: 25mm x 25mm
  • Mounting hole diameter: 3mm
  • Header pins: unsoldered
  • Number headers pin: 4

535.50 595.00 (ex. GST)

GY-NEO6V2 or NEO-6 is a product of U-Blox and comes in a series of stand-alone GPS receivers with the feature of the high-performance 6-position engine. It uses the latest technology of U-Blox and gives precise positioning. It has an onboard battery and memory that makes is perfect for battery-operated devices. The module is compatible with any microcontroller and Arduino and comes with an external Antenna.

NEO-6 GPS module has a very compact size with battery, memory EPROM and antenna. It has 4 pins only that makes it easy to interface with Arduino.


  • Onboard battery backup
  • External ceramic antenna
  • TTL compatible
  • Onboard EEPROM that saves data while power is off
  • Compact size
  • Compatible with Arduino and other microcontrollers
  • Led signal indicator
  • Adjustable baud rate


  • Supply voltage: 3V to 5V
  • Supply current: 67mA
  • Default baud rate: 9600 bps
  • Interface type: RS232 TTL
  • Antenna gain: 50 dB
  • Tracking and navigation sensitivity: -160 dBm
  • Reacquisition sensitivity: -160 dBm
  • Autonomous cold start sensitivity: -146 dBm
  • Capture time
    • Fastest cool start: 27s
    • Hot start: 1s
  • Navigation update rate
    • Default: 1Hz
    • Maximum: 5Hz
  • Communication protocol
    • By default NMEA
    • UBX binary
  • Compatible interfaces: UART, USB, SPI, and DDC
  • Operating temperature: -40℃ to 85℃

Package Contains

  • 1 x GPS module
  • 1 x ceramic antenna
  • 4 x header pins
