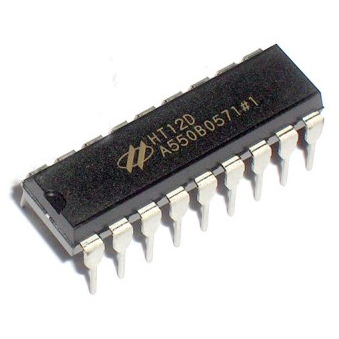

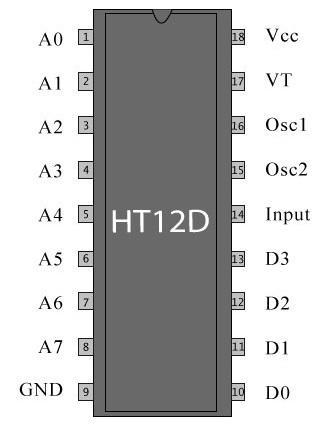

HT12D Decoder IC for RF Module

HT12D is a decoder IC for remote control applications, commonly in Radiofrequency (RF) wireless applications, and it is 2 series decoders. We can transmit 12 bits of parallel data serially by using HT12E and HT12D. HT12D is a simple Decoder IC that converts serial data to its input through RF to 12 bits parallel data in which there are 4 data bits and 8 address bits. These 8 bits addresses are security code for 4 bits data, which means we can provide 8 bits security code for 4 bits data and can use multiple receivers by using the same transmitter.

Specification

• Range of Operating voltage: 2.4V~12V
• CMOS technology with low power and high noise immunity
• Standby current: low
• Decoding bits: 12 bits of information
• HT12D bits classification: 4 data bits and 8 address bits
• Oscillator: Built-in and needs only 5% resistors
• It has a valid transmission indicator
• Easy to interface with an RF or IR transmission
• Does not require any external components
• It is 212 series of encoders
