MT3608 2A DC-DC Boost Converter Step Up Module

Add to wishlist

Product Details

  • Product: DC-DC step up Boost Module
  • Module: MT3608
  • Dimension: 36mm x 17mm x 6.25mm
  • Package contains: 1 x MT3608 2A DC-DC Boost Converter Step Up Module

₹35.00 (ex. GST)

Add to wishlist

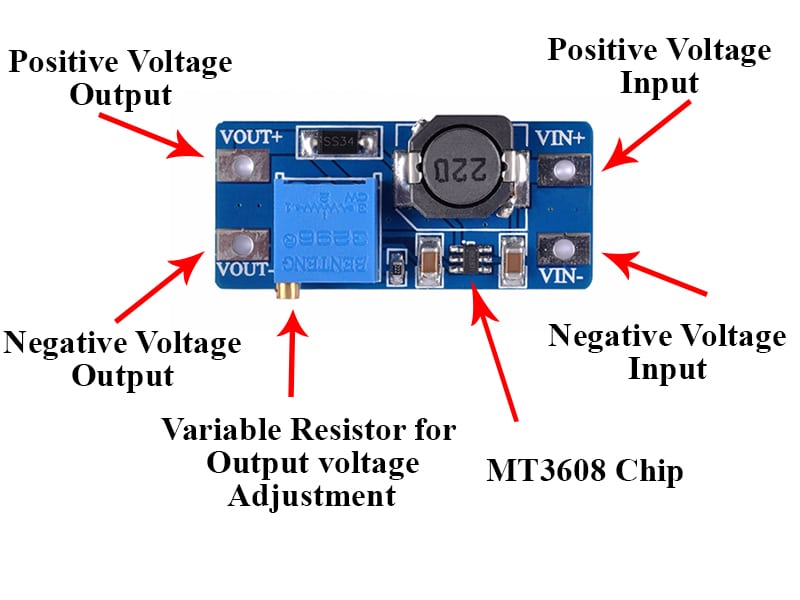

MT3608 is a high-efficiency low-cost step-up or boost converter module. It can boost a 2V to 24V input voltage to 5V to 28V output voltage at 2A current. Since it is a boost converter module so the output voltage will be higher than the input voltage but the output current will be lesser than the input voltage.

The module has an inbuilt potentiometer to adjust the output voltage. Turning the potentiometer by CW will decrease the voltage and by CCW will increase the voltage. The module requires minimum external components to use in the circuit.

The device features with under-voltage lockdown, current limiting, overheat protection, low quiescent current, and soft start function.

Features

  • High efficiency
  • Low cost
  • Compact size
  • Up to 2A output current
  • Can deliver 93% output accuracy
  • Overheat protection
  • Soft start function
  • Under voltage lockdown
  • Quiescent current as low as max. 200uA

Specification

  • Input voltage: 2V to 24V
  • Output voltage: 5V to 28V
  • Maximum output current: 2A
  • Adjustment: 25-turns trimpot
  • Efficiency: 93%
  • Switching frequency: 1.2MHz
