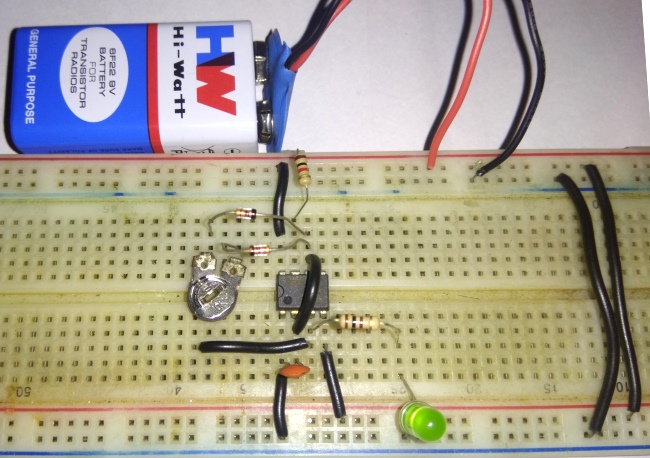

PWM LED Dimmer Kit Using 555 Timer IC


PWM LED Dimmer Kit Using 555 Timer IC

83.90 ex. GST

Components in the Kit

  • 555 timer IC: 1
  • 2N2222 Transistor: 1
  • 1N4148 Signal Diode: 1
  • 5mm red LED: 4
  • Resistors
    • 1K: 6
    • 47K: 1
  • Capacitor
    • 0.1uf: 1
    • 0.01uf: 1
  • Connecting wire: 4M
  • 9V battery with snap connector: 1

Note: Download manual from here: PWM led dimmer
