Basic Components

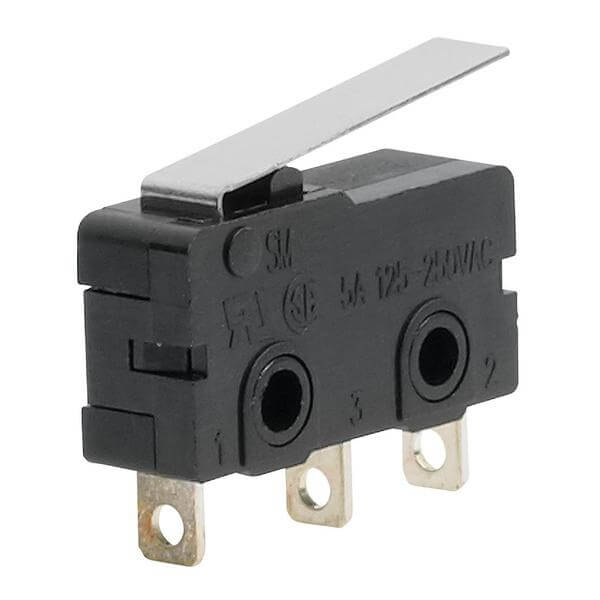

Short Lever Switch Subminiature Snap Action Switch
Product Details
- Product: – Short Lever Switch
- Actuator: – Short Lever
- Type: – SPDT
- Action: – Snap Action Momentary
- Terminal Material: – Brass – Silver Plate
- Terminal Type: Solder
₹29.00 (ex. GST)
Specification
- Actuator: – Short Lever
- Type: – SPDT
- Action: – Snap Action Momentary
- Current Rating: – 5A@ 125V AC, 3A@ 250V AC
- Initial Contact Resistance: – 15 Meg ohm (Max.)
- Insulation Resistance: – 500V DC 1000 Meg ohm (Min.)
- Dielectric Strength: – 1000V AC for 1 Minute
- Contact Material: – Silver
- Terminal Material: – Brass – Silver Plate
- Terminal Type: Solder
