Features :
- seamlessly Switch between the temperature modes (between cool and heat).
- Temperature is controlled by setting the temperature value and the difference value.
- manual temperature calibration is available.
- Refrigerating control output delay protection is built-in.
- An alarm outputs a warning sound when the temperature exceeds temperature limit or when the sensor outputs error.
Specification And Dimensions :
- Front panel size : 75(L) x 34.5(W)(mm)
- Mounting size: 71(L) x 29(W)mm.
- sensor length: 1m (include the probe).
- Product size75(L) x 34.5(W) x 85(D)mm.
Technical Parameters :
- Temperature measuring range: -50 – 99°C.
- Resolution : 0.1°C.
- Accuracy : ±1°C (-50 – 70°C).
- Sensor error delay: 1 minute.
- Power supply: 220VAC±10%, 50/60Hz
- .Power consumption: ≤3W.
- Sensor: NTC sensor (1PC).
- Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC.
- Ambient temperature : 0 – 60°C.
- Storage temperature : -30 – 75°C.
- Relative humidity : 20% – 85% (No condensate).
Package Includes :

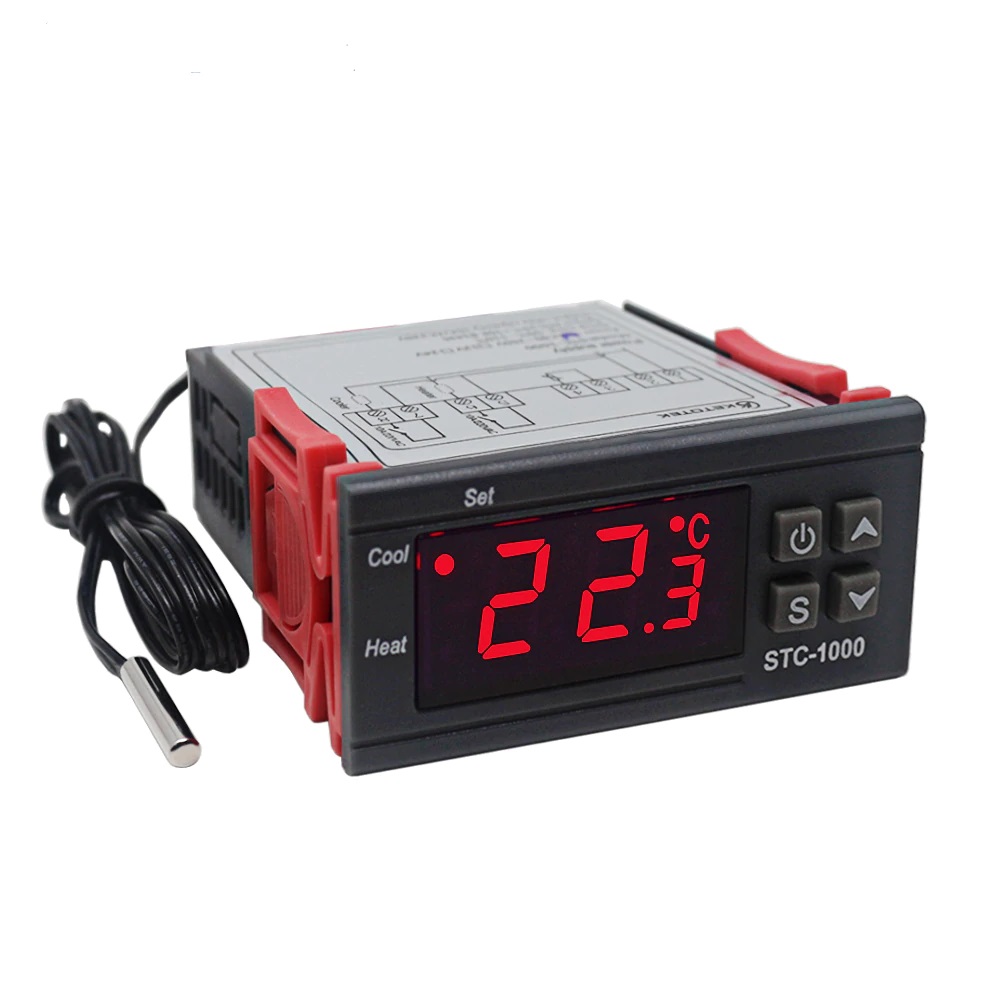

- 1 x 220V Mini Digital Temperature Controller Thermostat.
- 1 x Temperature sensor probe with 1M cable.
- 1 x Instruction Manual.
