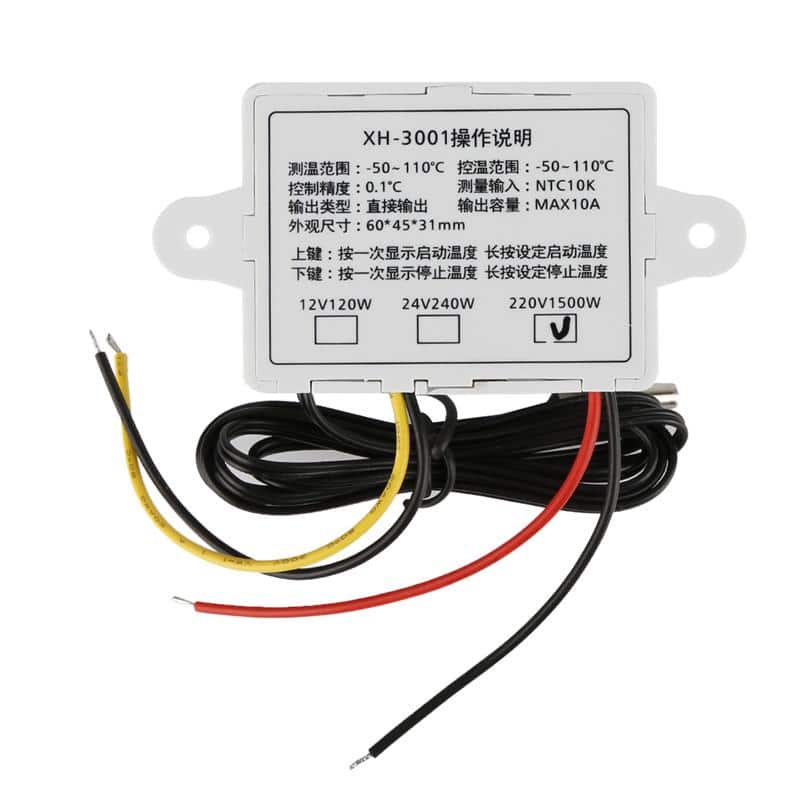

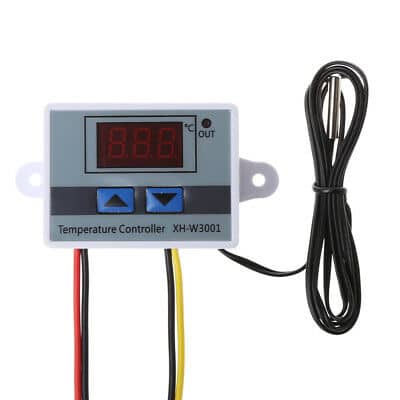

XH-W3001 is a 220V 1500W digital temperature controller module with a 1M probe made up of stainless steel which makes it waterproof and does not let it rust easily. The module has some sensitive and delicate parts which are kept safe in ABS flame retardant housing which is virulent and environmentally protective.
This temperature controller module offers very precise and accurate temperature control at a low cost and small size. The device has a high quality LED display that shows the result clearly and can be directly installed and mounted in the industrial control equipment panel, convenient and quick.
- Easy to install and mount in the industrial control equipment panel
- Offers a high-temperature control precision of 0.1℃
- LEDs clearly show the result
- With 1M temperature probe that makes it waterproof
- Temperature measuring range: -50℃ to +110℃
- Temperature control range: -50℃ to +110℃
- Temperature measurement accuracy: ±0.2℃
- Temperature control accuracy: ±0.1℃
- Input measurement: NTC10K
- Probe length: 1M
- Output type and power: AC 220V 1500W
- Output capacity: max 10A temperature measurement, Display; refrigeration, heating control

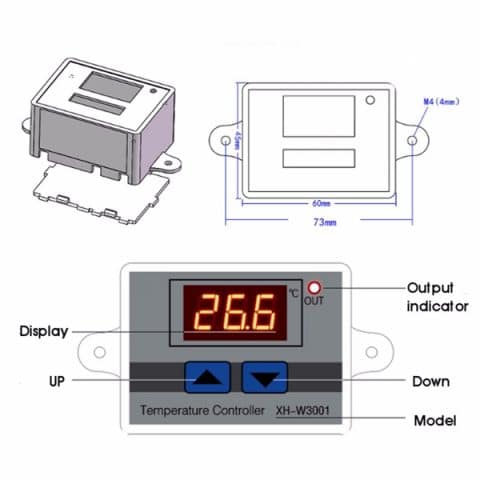

- Press UP Button to show start temperature button
- Long press the UP button, the display starts flashing, press the UP or DOWN button, and set the beginning of the temperature value.
- Press DOWN the display button to stop temperature.
- Long press the DOWN button, the display starts flashing, press the UP or DOWN butter set to stop the temperature value.
