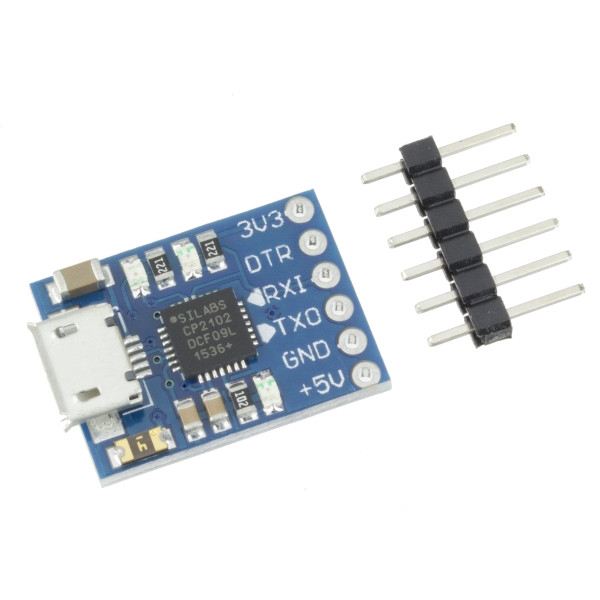

CP2102 USB to TTL USB UART Serial Converter Module

Product Details:

  • Product: CP2102 USB to TTL Module
  • Number of pins: 6
  • Header pins: soldered
  • Dimension: 42mm x 14mm
  • Weight: 4g
  • Package contains 1 x CP2102 USB to TTL USB UART Serial Converter Module

149.00 (ex. GST)

CP2102 Module is CP2102 based on highly integrated single-chip USB to TTL bridge IC. it requires the very minimum external components. The module has a built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART). It supports a full-featured modem signal without any external USB device. This is a powerful tool for those who want to make PC interfaced projects or devices.

This module can be used with a laptop that does not have a standard serial port. It makes a virtual COM port using USB on the computer which can support various Baud rates for serial communication.


  • Based on the stable and reliable CP2102 chip
  • Compatible with Windows, Mac, and Linux
  • USB2.0 compliant with full-speed 12Mbps
  • All handshaking and modem interface signal
  • 576 byte receive buffer, 640 byte transmit buffer
  • Event character support line break transmission
  • USB suspend state-supported via SUSPEND pins


  • Power supply: 5V and 3.3V
  • Baud rate: 300bps to 1.5Mbps
  • EEPROM: 1024 Byte
  • Chip: CP2102
  • Temperature range: -40℃ to +85℃
