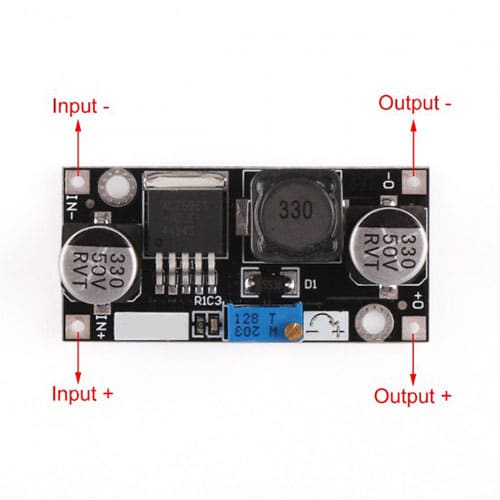

LM2596 DC-DC Buck Converter Step Down Power Supply Module
Product specification
- Module type: 2596 power supply module
- DC to DC Buck (Step down) converter
- Dimension: 48mm x 23mm x 14mm
- Thermal shutdown and current limit protection
- TTL shut down capability
₹79.00 (ex. GST)
LM2596 converts DC to DC step down power supply. It is adjustable in +1.23 to 35cdc and capable of handling load up to 3A, but the typical output is 2A. It is best suitable for battery operated device to give regulated voltage.
Specification
- Input voltage range: 4 to 40 Vdc
- Output voltage range: 1.23 to 26V
- Maximum output current: 3A
- Typical output current: 2A
- Switching frequency: 150kHz
- Low power standby mode: 80µA
- Load regulation: ±0.5%
- Voltage regulation: ±2.5%
Instruction
Use external heatsink in case output current is more than 2.5A 10W
