MOC3023 Optocoupler Random Phase Optoisolator Phototriac Driver IC

Product Details :

IC type optocoupler
IC number MOC3023
IC color White
Dimension 3.53mm x 8.89mm x 6.6mm

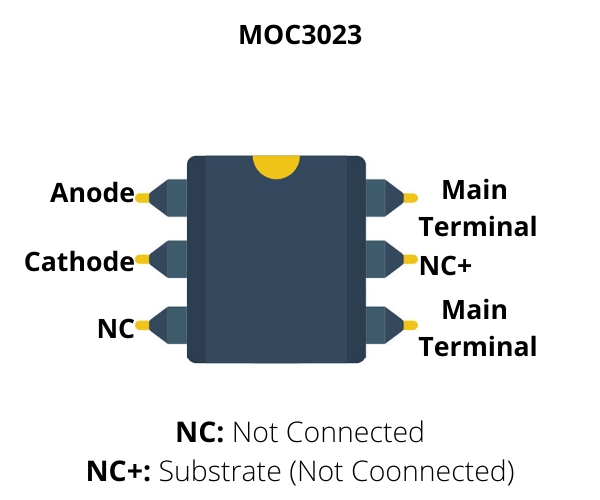

Case type 6-DIP
Number of pins 6
Pin type through holes

22.00 (ex. GST)

MOC3023 is a random phase generator optocoupler with trial driver output. The devices come with a 6 pin DIP through-hole package. The internal IC consists of gallium arsenide infrared emitting diode and optically coupled or activated silicon bilateral switch which functions like a triac. The device interfaces between electronics control and power triac and can handle the load up to 115VAC.


  • Maximum reverse voltage: 6V
  • Forward voltage: 1.15V to 1.5V
  • Maximum continuous forward current: 60mA
  • Reverse current: 10µA
  • Off-state output terminal voltage: 400V
  • Peak repetitive surge current: 1A
  • Collector power dissipation: 300mW
  • Maximum continuous output current: 100mA
  • Total power dissipation: 330mW
  • Isolation voltage: 5000Vrms
  • Maximum turn-on time: 20µs


  • Lamp ballasts and lamp dimmers
  • Solenoid or valve control
  • Motor control
  • Solid-state relay
  • Interfacing microprocessor to 115VAC supply

Package contains

  • 1 x MOC2023 optocoupler IC
