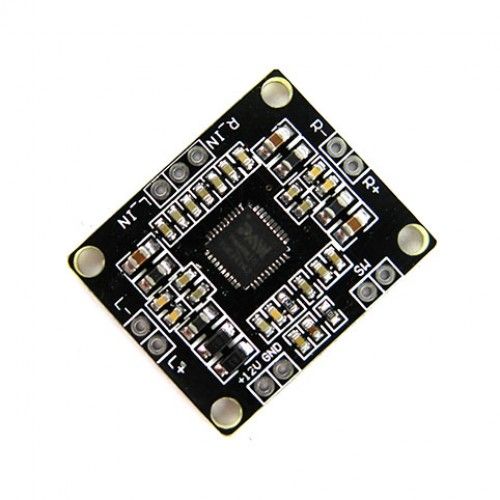

PAM8610 2x15W RMS Dual Channel Digital Stereo Class-D Amplifier Module
PAM8610 2x15W RMS Dual Channel Digital Stereo Class-D Amplifier Module
₹165.00 (ex. GST)
The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control range [+32dB to -75dB]. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs.

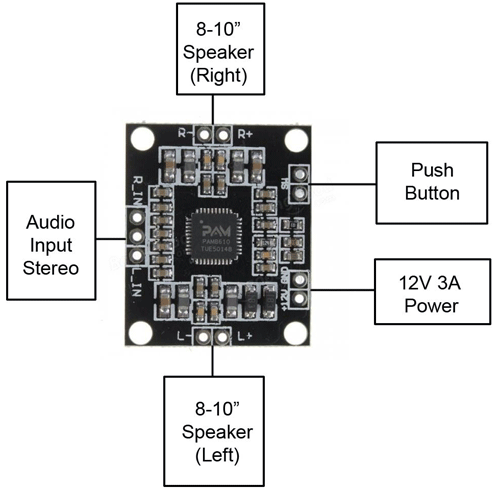

PAM8610 is a 12V Mini class D digital audio(power) amplifier board with 2 x15w Dual Channel Stereo output. It’s Highly efficient, 12V power supply Output’s 10W + 10W of power, the chip without heat sink has overheating issues, so heat sink is recommended, over-current protection function. The board has a switching function, the SW shorted turns off the power amplifier.
Specifications:
- Supply voltage: DC 6V-15V
- 2.Recommendation voltage:DC12V 2A
- Output power: 10W*2(8Ω) 15W*2(4Ω)
- 4.Channel type: Double Channels
- Quiescent current; 20mA
- SNR: 90%
- 7.working mode:D type
- Frequency range: 20Hz-15KHz
- Input impedance: 15K
- Output Impedance: 4-8Ω

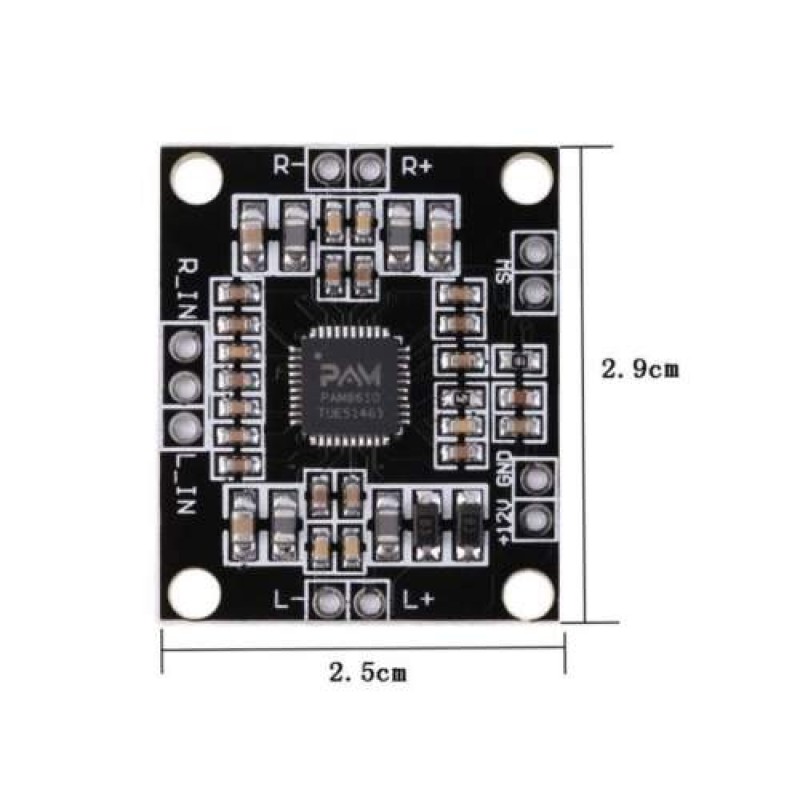

- Dimensions: 28mm * 22mm * 2.5mm
Parameters:
| Model | PAM 8610 |
| Input Voltage (V) | 7 ~ 15V |
| Working Mode | Class D (PWM) |
| Power (W) | 2 X 15W Peak RMS |
| Length (mm) | 30.5mm |
| Width (mm) | 25.5mm |
| Height (mm) | 2.6mm |
| Weight (gm) | 5gm |
